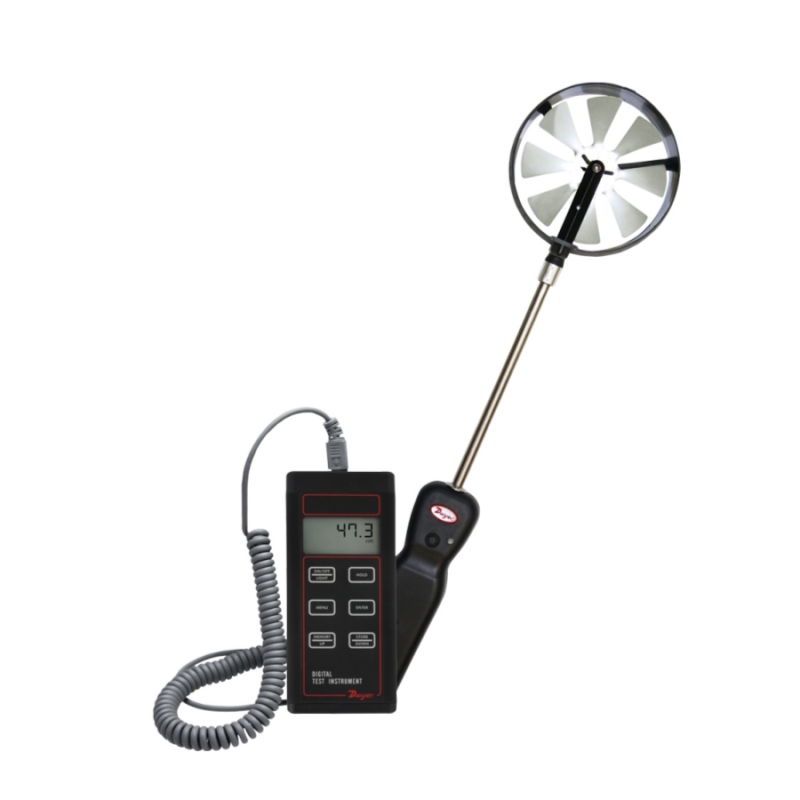

100mm Vane Thermo-Anemometer Test Instrument Model 473B

Source of Supply: Directly imported by DLK TRADING SERVICE COMPANY LIMITED ⭐⭐⭐⭐⭐ Product Line: Model 473B✅ Certifications: 💨 For Use: Khí⚙️ Product Type: Thiết bị đo🔧 Functions: Kiểm Tra Và Lưu Dữ Liệu

ContactContact us for advice and quotes

Product information

🏭 Hãng sản xuất: DWYEROMEGA - Thương hiệu Mỹ

⭐ Dòng sản phẩm: Model 473B - Nhà máy tại: Mỹ

✅ Chứng nhận: 💨 Dùng cho: Khí

⚙️ Loại sản phẩm: Thiết bị đo

🔧 Chức năng: Kiểm Tra Và Lưu Dữ Liệu

💵 Thuế VAT: Áp dụng mức 8% hoặc 10%, tùy theo chính sách hiện hành.
💰 Đơn vị tiền tệ: VND (Việt Nam Đồng).

Tags:

🚚 Imported by bởi DLK TRADING SERVICE COMPANY LIMITED.
✅ Quality : Hàng mới 100%, đảm bảo chính hãng, đầy đủ hồ sơ nhập khẩu.
🛠️ Guarantee : 12 tháng, (tùy chọn 36 tháng).
📞 Phone : 0937972339

Technical characteristics
Name of the product
Standard technical document

MODEL 473B	100 MM VANE THERMO-ANEMOMETER TEST INSTRUMENT
Specification	Description
Service	Dry, clean air.
Temperature Limits	Process: -20 to 212°F (-29 to 100°C); Ambient: 5 to 125°F (-15 to 51°C).
Display	4.5 digit backlit display.
Range	Air Velocity: 40 to 5000 fpm (0.2 to 25 m/s); Volumetric Air Flow: 19,999 in selected flow units; Temperature: -20 to 212°F (-29 to 100°C); Relative Humidity: 0 to 100% RH.
Accuracy	Air Velocity: ±1.5% of reading ±20 fpm (±0.1 m/s) [0.25 to 10 m/s]; ±1.5% of reading ±40 fpm (±0.2 m/s) [10 to 20 m/s]; ±1.5% of reading ±60 fpm (±0.3 m/s) [20 to 25 m/s]; Temperature: ±0.54°F @ 77°F (±0.3°C @ 25°C); Relative Humidity: ±2% @ 77°F (25°C) [10 to 90% RH]; ±4% [0 to 10, 90 to 100% RH].
Response Time	Air Velocity: 1 s; Volumetric Air Flow: 1 s; Temperature: 1.5 s; Relative Humidity: 1.5 s.
Probe Length	8" (203 mm) insertion.
Cable Length	28" (71 cm) retracted; 6' (183 cm) extended.
Vane Material	Anodized aluminum.
Power Requirements	9 V alkaline battery, installed non-functional, user replaceable.
Weight	18.4 oz (521 g).

473B_CATALOG_DWYER_DLK.pdf

473B_MANUAL_DWYER_DLK.pdf

473B_DATASHEET_DWYER_DLK.pdf
