Dwyer TS2, TS2-K & TS-PROBES Setup Guide – Accurate Connection & Configuration

Instructions for Connecting and Using Dwyer TS2, TS2-K, and TS-PROBES

1. System Overview
   The complete temperature control system from Dwyer includes:

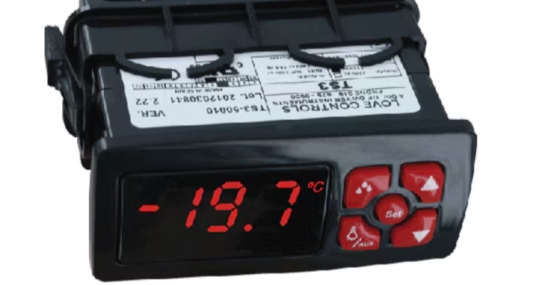

• TS2 Temperature Controller

• TS2-K Configuration Key
• TS-PROBES Temperature Probe

When combined, this system allows:

• Accurate temperature measurement using PTC/NTC probes.
• Display, monitoring, and adjustment of temperature parameters on the TS2.
• Quick configuration cloning across multiple TS2 units using the TS2-K, eliminating the need to configure each device individually.

2. Hardware Connection
a. Connecting the TS-PROBES to the TS2

TS-21 Probe
The probe has 2 wires and connects to the SENSOR INPUT port on the TS2 (terminals 2 and 3).

b. Powering the TS2

• Provide the correct power supply based on the model: 115VAC / 230VAC or 12-24V AC/DC.
• Connect to terminals 5 and 6 following the wiring diagram.

c. Connecting the TS2-K for Configuration

• Open the key’s casing and switch both DIP switches to ON-KE position.
• Close the casing.
• Connect the key to the controller’s connection port.
• Press and hold the button on the key.
• When the LED on the key turns green, the parameters have been successfully copied from the controller to the key.

If you DO NOT see a green light, the following errors may occur:

• 🔋 Blinking green LED → Low battery, replace the key’s battery.
• 🔴 Blinking red LED → Communication error, check if the key is properly connected to the controller.

Tip: If you have multiple TS2 devices with the same configuration, you only need to configure one, save it to the TS2-K, and then copy it to the others – this saves a lot of time.

3. Configuring Parameters on the TS2
Function Keys

• SET: Confirm, enter menu, save value
• ▲ (Up): Increase value / scroll up
• ▼ (Down): Decrease value / scroll down

How to Access and Edit Parameters

• Press and hold SET for 8 seconds → access the programming menu
• Use ▲▼ to select the parameter code (e.g., r0, d1, A1)
• Press SET to enter edit mode → use ▲▼ to change the value
• Press SET to save → press SET + ▼ simultaneously to exit quickly

4. Notes

• Periodically check the probe – avoid oil, water, or chemical contamination.
• Do not remove the TS2-K while configuring.
• Keep the device in a dry, well-ventilated place.

Conclusion
Combining the TS2 controller, TS-PROBES, and TS2-K key allows you to build a precise, easily cloned, and low-maintenance temperature monitoring system. Seamless connectivity among Dwyer devices ensures efficient operation and saves setup time for multiple systems.
